SBN Series

Skiving & Roller Burnishing Machines

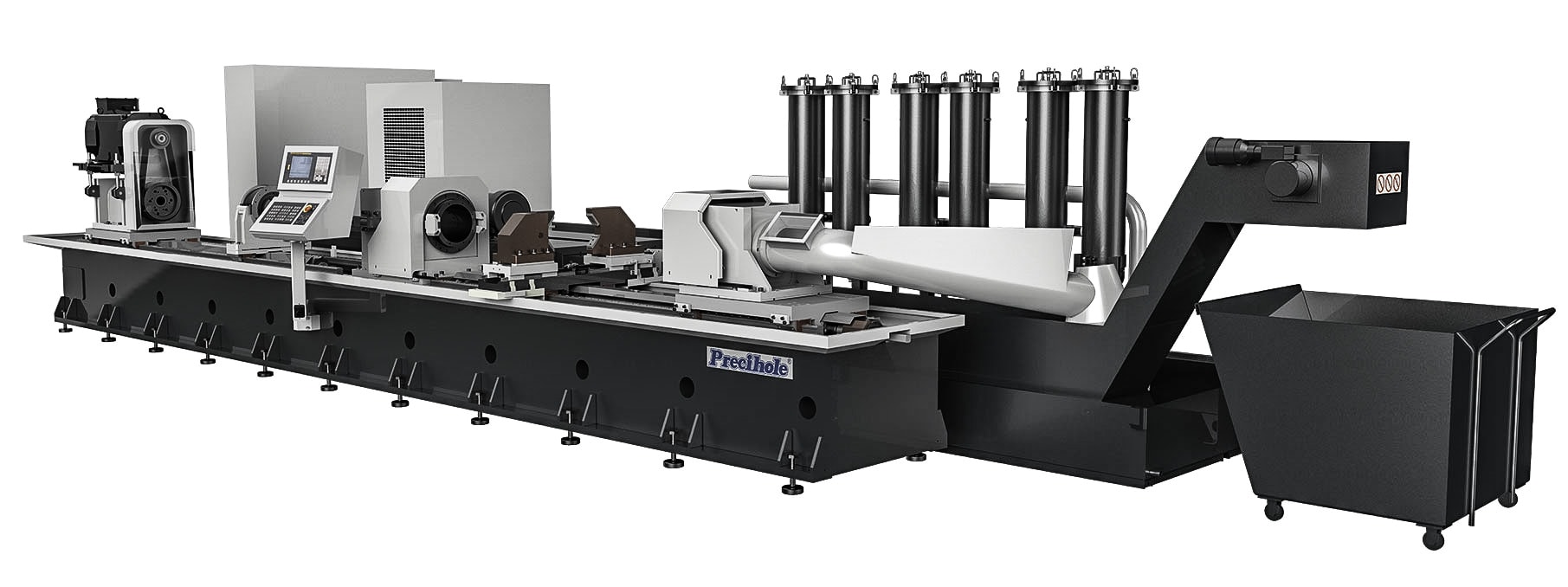

Skiving and Roller Burnishing Machine

Precihole’s SBN Series Skiving and Roller Burnishing Machines are built to operate in a high production mode for accurate size & best bore finished hydraulic cylinder tubes. Machines incorporate use of state of the art technology that enables cycle times to be 30-40 times faster than honing. Machines are customized to suit volume requirements and provide excellent surface finish and wall thickness consistency across the length of the tube. These machines are complete solutions that include features needed for continuous and repeatable performance over many years.

Machine Features
  • Rigid and Robust design to allow precise and vibration free movement of machine elements
  • Use of ball screw or rack and pinion with servo drives for linear motion

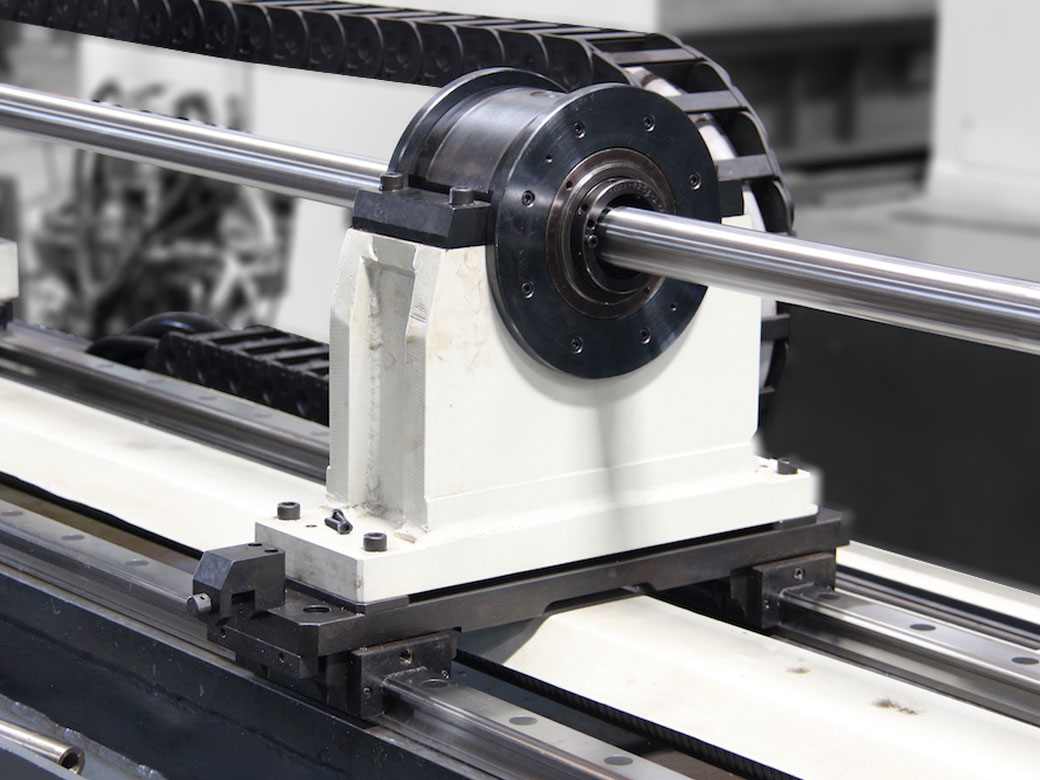

  • Multiple tool steadies to provide tube support
  • Hydraulic vice clamping for clamping tubes for slender or longer tubes

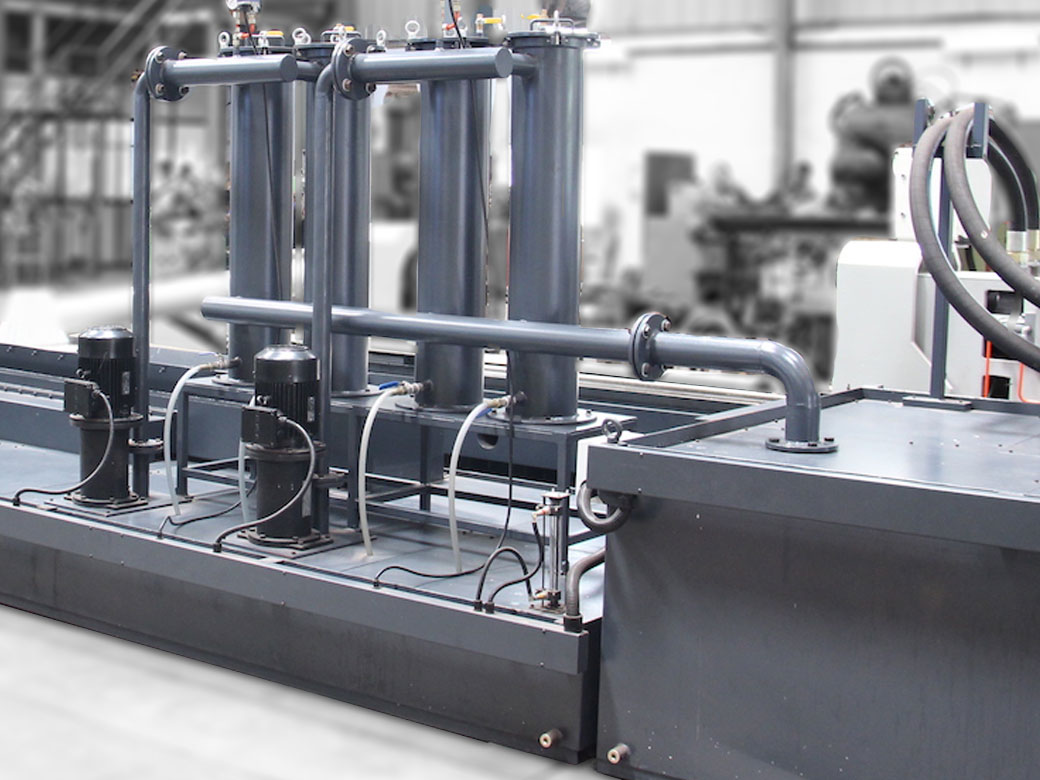

  • High pressure coolant and fine filtration system
  • Oil chilling and Automatic Lubrication

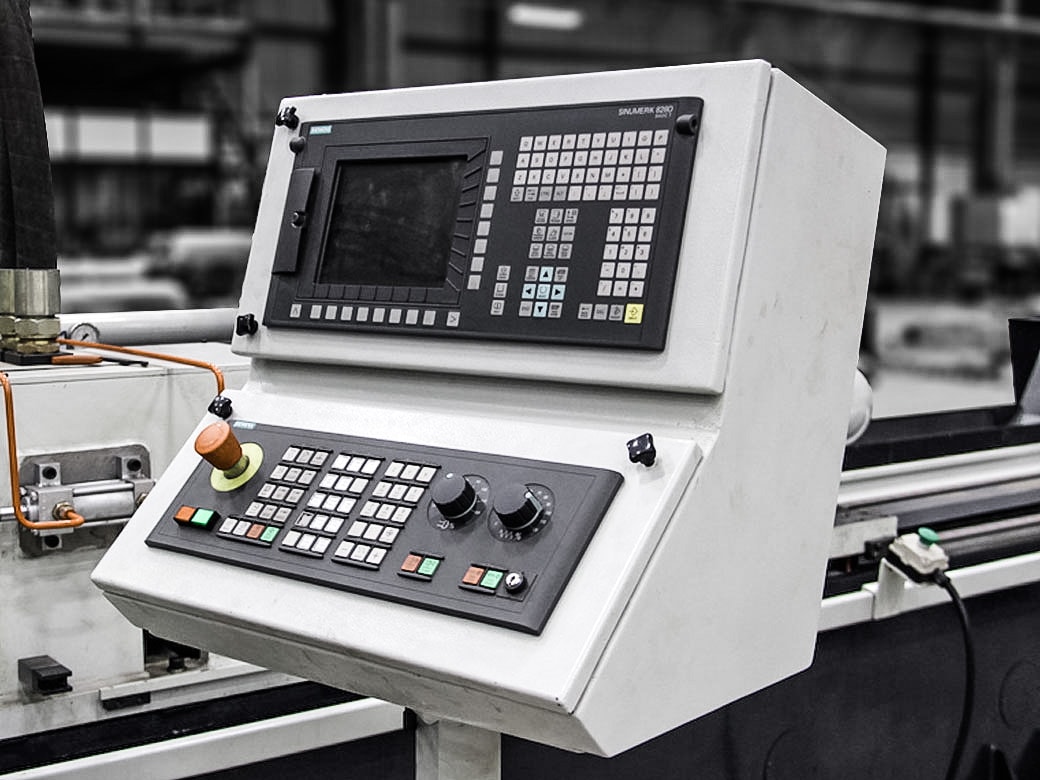

  • Fanuc / Siemens CNC controls with customized screens for monitoring machine parameters
  • Automatic loading unloading arrangement
Description SBN150 SBN250
Skiving & Roller Burnishing Range (mm) Ø40 - Ø150 Ø50 - Ø250
Skiving & Roller Burnishing Length (mm) 1000 - 10000
Configuration Tool Rotating & Feeding Part Statioary
Tool Head Spindle Power (kW) 51 74
Spindle Speed Range (rpm) 150 - 1600 100 - 1300
Coolant System Coolant Flow (lpm) 600 1000
Coolant Tank Capacity (liters) 4000 6000
Coolant Pump Power (kW) 11 18.5
Description SBN150 SBN250
Skiving & Roller Burnishing Range (in) Ø1.57 - Ø5 Ø2 - Ø10
Skiving & Roller Burnishing Length (in) 40 - 394
Configuration Tool Rotating & Feeding, Part Stationary
Tool Head Spindle Power (hp) 68 99
Spindle Speed Range (rpm) 80 - 1800 50 - 1200
Coolant System Coolant Flow (gpm) 159 264
Coolant Tank Capacity (gal) 1057 1585
Coolant Pump Power (hp) 15 25
Description SBN150 SBN250
Skiving & Roller Burnishing Range (mm) Ø40 - Ø150 Ø50 - Ø250
Skiving & Roller Burnishing Length (mm) 1000 - 10000
Configuration Tool Rotating & Feeding, Part Stationary
Tool Head Spindle Power (kW) 51 74
Spindle Speed Range (rpm) 150 - 1600 100 - 1300
Coolant System Coolant Flow (lpm) 600 1000
Coolant Tank Capacity (liters) 4000 6000
Coolant Pump Power (kW) 11 18.5
Description SBN150 SBN250
Skiving & Roller Burnishing Range (in) Ø1.57 - Ø6 Ø2 - Ø10
Skiving & Roller Burnishing Length (in) 40 - 394
Configuration Tool Rotating & Feeding, Part Stationary
Tool Head Spindle Power (hp) 68 99
Spindle Speed Range (rpm) 150 - 1600 100 - 1300
Coolant System Coolant Flow (gpm) 159 264
Coolant Tank Capacity (gal) 1057 1585
Coolant Pump Power (hp) 15 25
