PMTC Series

Column Type BTA / Gun Drilling Machines

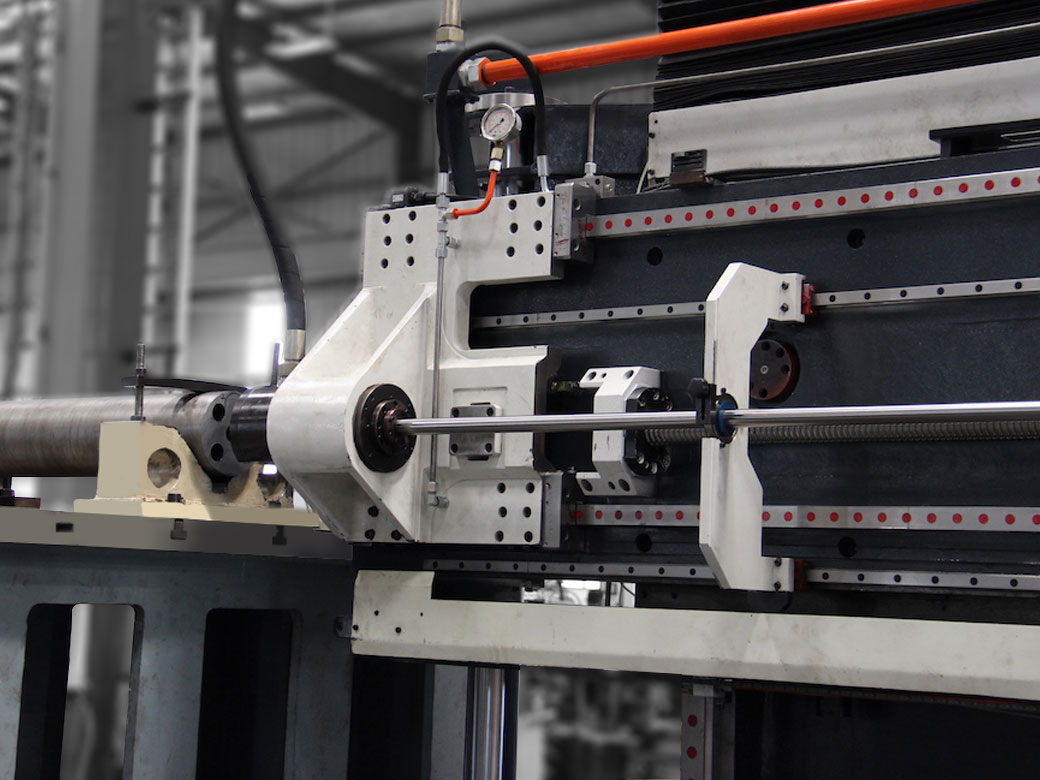

Column Type Deep Hole Drilling Machine

Precihole’s XYGVNCL Series Column Type Multi Axis Gun Drilling Machines satisfy all requirements for drilling and milling of multiple deep holes in large size molds for Die and Mold industry and Tube sheets. Machines can be customized to accommodate size and stroke requirements. These machines provide excellent location accuracy and repeatability, straightness, surface finish and bore tolerance. Length to diameter ratios of up to 100 are possible on these machines.

Machine Features
  • Adequate axes strokes to accommodate large size mold bases
  • Use of ball screw and servo drives for linear motion
  • Rigid cast iron column construction to provide required accuracy
  • High pressure coolant and fine filtration system
  • Oil chilling and Automatic Lubrication
  • Fanuc / Siemens CNC controls with customized screens for monitoring machine parameters
Description XYGVN20CL XYGVN25CL XYGVN40CL
Drilling Diameter (mm) Ø4 - Ø25 Ø8 - Ø40
Spindles (nos) 1
Drilling Depth (mm) 600 1000 1000/1200/1500
Drill Feed (mm/min) 0 - 1000
Rapid Traverse (mm/min) 4000
Spindle Power - Drilling (kW) 7.5 15
Spindle Speed Range (RPM) 650 - 7500 400 - 3500
Table Size (mm) 1000 x 1000 1200 x 1200 1500 x 1500
X Axis (mm) 600 1000 1500
Y Axis (mm) 600 1000 1500
B Rotary Table (deg.) - Optional/360 Optional/360
W Clearance Axis - Optional Optional
Max Component Weight (kg) 3000 5000 8000
Description XYGVN20CL XYGVN25CL XYGVN40CL
Drilling Diameter (in) Ø0.15 - Ø1 Ø0.3 - Ø1.5
Spindles (nos) 1
Drilling Depth (in) 24 40 40/48/60
Drill Feed (in/min) 0 - 40
Rapid Traverse (in/min) 157
Spindle Power - Drilling (hp) 10 20
Spindle Speed Range (RPM) 650 - 7500 400 - 3500
Table Size (in) 40 x 40 48 x 48 60 x 60
X Axis (in) 24 40 60
Y Axis (in) 24 40 60
B Rotary Table (deg.) - Optional/360 Optional/360
W Clearance Axis - Optional Optional
Max Component Weight (lbs) 6600 11000 17500
Description XYGVN20CL XYGVN25CL XYGVN40CL
Drilling Diameter (mm) Ø4 - Ø25 Ø8 - Ø40
Spindle (nos) 1
Drilling Depth (mm) 600 1000 1000 / 1200 / 1500
Drill Feed (mm/min) 0 - 1000
Rapid Traverse (mm - min) 4000
Spindle Power - Drilling (kW) 7.5 15
Spindle Speed Range (RPM) 650 - 7500 400 - 3500
Table Size (mm) 1000 x 1000 1200 x 1200 1500 x 1500
X Axis (deg) 600 1000 1500
Y Axis (mm) 600 1000 1500
B Rotary Tabel (deg) - Optional / 360 Optional / 360
W Clearance Axis - Optional Optional
Max Component Weight (kg) 3000 5000 8000
Description XYGVN20CL XYGVN25CL XYGVN40CL
Drilling Diameter (in) Ø0.15 - Ø1 Ø0.3 - Ø1.5
Spindle (nos) 1
Drilling Depth (in) 24 40 40 / 48 / 60
Drill Feed (in/min) 0 - 40
Rapid Traverse (in - min) 157
Spindle Power - Drilling (hp) 10 20
Spindle Speed Range (RPM) 650 - 7500 400 - 3500
Table Size (in) 40 x 40 48 x 48 60 x 60
X Axis (in) 24 40 60
Y Axis (in) 24 40 60
B Rotary Tabel (deg) - Optional / 360 Optional / 360
W Clearance Axis - Optional Optional
Max Component Weight (lbs) 6600 11000 17500
