HHM Series

Horizontal Honing Machines

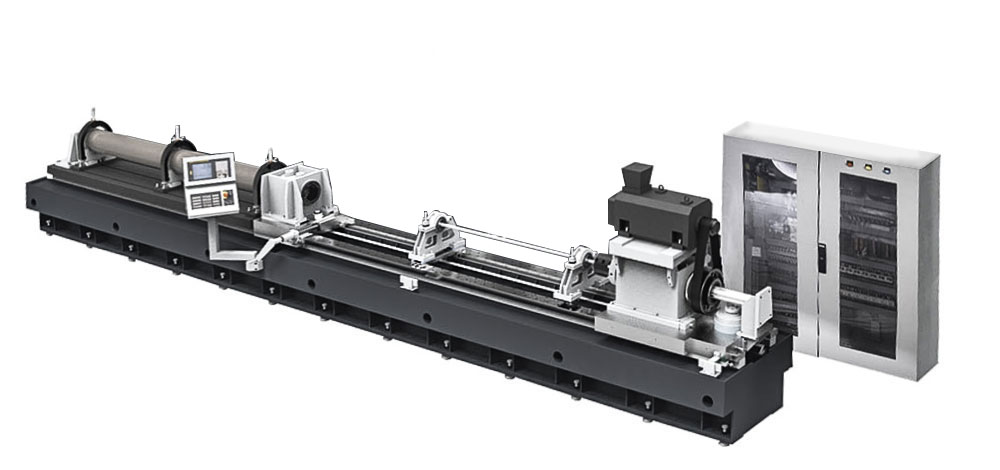

Precihole Horizontal Honing Machines cover the requirements of honing the complete range from Ø20 mm to Ø160 mm. The maximum length of the component can be up to 10000 mm. The honing solution includes the machine as well as all the tooling and tooling accessories needed. The design of the machine is optimized to allow quick loading and unloading of component. Precision control of depth and diameter of the component are ensured by using PLC controls and servo drives.

Machine Features

Use of precision rack and pinion and servo drives for reciprocating linear motion
Special fixturing for quick component location and clamping
10 micron fine coolant filtration system
Fanuc / Siemens CNC controls
User friendly machine operation

Description	HHM40	HHM120
Honing Diameter Range (mm)	Ø20 - Ø40	Ø30 - Ø125
Configuration	Part Stationary - Tool Rotating and Feeding
No. of Spindles (nos)	1
Max. length of Barrel (mm)	3000	5000
Max. Barrel OD (mm)	100	150
Max. Barrel Weight (kg)	200	900
Spindle Speed (rpm)	100-500	100-300
Feed Range (m/min)	0-30

Description	HHM40	HHM120
Honing Diameter Range (in)	Ø20 - Ø40	Ø30 - Ø125
Configuration	Part Stationary - Tool Rotating and Feeding
No. of Spindles (nos)	1
Max. length of Barrel (in)	3000	5000
Max. Barrel OD (in)	100	150
Max. Barrel Weight (lbs)	200	900
Spindle Speed (rpm)	100-500	100-300
Feed Range (ft/min)	0-30

Description	HHM40	HHM120	HHM155
Honing Diameter Range (mm)	Ø20 - Ø40	Ø30 - Ø125	Ø50 - Ø160
Configuration	Part Stationary - Tool Rotating and Feeding
No. of Spindles (nos)	1
Max. length of Component (mm)	3000	5000	10000
Max. Component OD (mm)	100	150	200
Max. Component Weight (kg)	200	900	2500
Spindle Speed (rpm)	100-500	100-300
Feed Range (m/min)	0-30

Description	HHM40	HHM120	HHM155
Honing Diameter Range (in)	0.78 - 1.57	1.2- 5	2- 6.5
Configuration	Part Stationary - Tool Rotating and Feeding
No. of Spindles (nos)	1
Max. length of Component (in)	120	196	400
Max. Component OD (in)	4	6	10
Max. Component Weight (lbs)	450	2000	5500
Spindle Speed (rpm)	100-500	100-300
Feed Range (ft/min)	0-10
