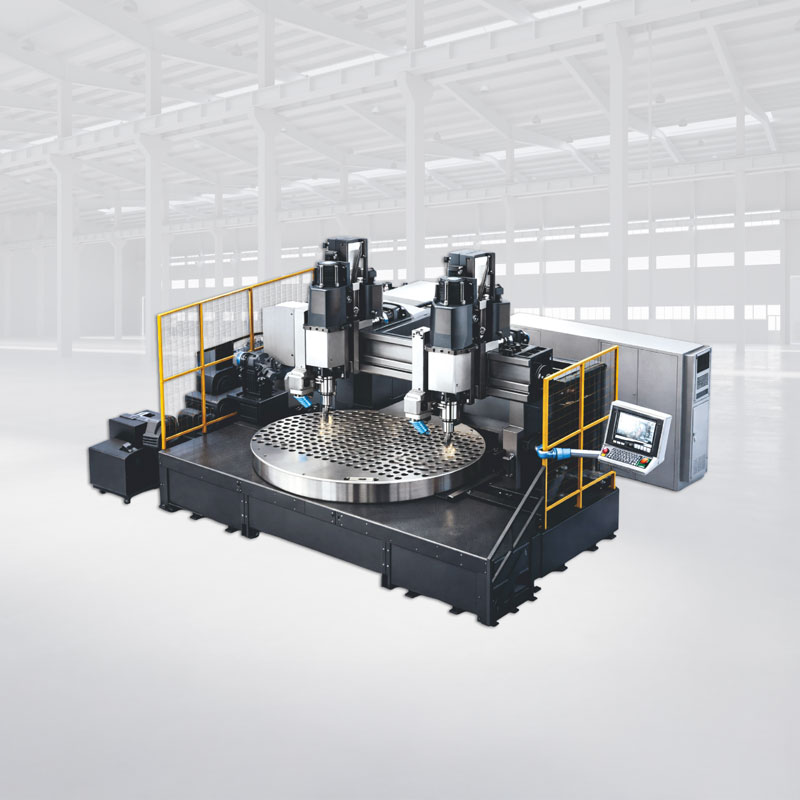

Precihole's tube sheet drilling machines are high-precision CNC solutions engineered for the demanding requirements of heat exchangers, boilers, and pressure vessels. These machines prioritize positioning accuracy and perpendicularity, ensuring the leak-free joints essential for high-pressure applications. By combining robust construction with advanced automated cycles, they deliver consistent performance across complex hole patterns in thick or alloyed materials. This focus on rigidity and optimized coolant delivery reduces cycle times and operator dependency, making them a dependable, low-maintenance choice for high-volume industrial manufacturing.
Model
TDM1000
TDM1500
TDM2000
Diameter Range (mm)
Ø10 - Ø30
Configuration
Moving column - Part stationary, column move with spindle movement in vertical and horizontal directions.
No. of Spindles (nos)
Variable Center Distance
1 / 2
Yes
Max. size of part (mm)
1000 x 1000 x 300
1500 x 1500 x 300
2000 x 2000 x 300
Max. Drilling Depth (mm)
Ø300
Max. Tube Sheet Thickness (mm)
200 - 300
Spindle Speed (rpm)
100 - 2000
Drilling Feed Rate (mm/rev)
0.05 - 0.5
Drilling Tolerance (mm)
0.05 / 0.1
Max. Coolant Pressure (bar)
50
Model
TDM1000
TDM1500
TDM2000
Diameter Range (in)
Ø0.4 - Ø1.18
Configuration
Moving column - Part stationary, column move with spindle movement in vertical and horizontal directions.
