Three Axis Gun Drilling Machines

Multi-Axis Precision Drilling for Die & Mold and Automotive Applications

Precihole Machine Tool
Precihole Machine Tool
Precihole Machine Tool
Precihole Machine Tool
Vector

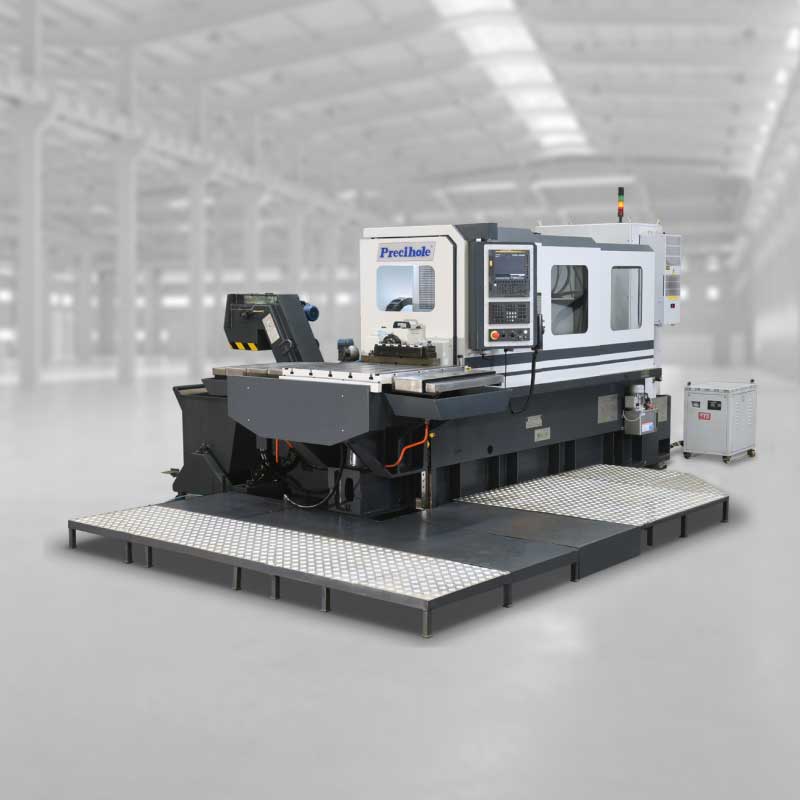

Precihole’s XYGVN Series Knee Type Multi Axis Gun Drilling Machines are designed to accommodate requirements for drilling multiple holes in small and medium size molds in Die and Mold industry. Machine can be customized to accommodate size and stroke requirements for various prismatic parts. Lot of off centered long hole application in automotive industries can be done efficiently. These machines provide excellent location accuracy and repeatability, straightness, surface finish and bore tolerance. Length to diameter ratios of up to 100 are possible on these machines.

Machine Features
  • Versatile and operator friendly machine design
  • Adequate axes strokes to accommodate small and medium size mold bases
  • Use of ball screw and servo drives for linear motion
  • Multiple tool steadies to provide adequate tube support
  • High pressure coolant and fine filtration system
  • Oil chilling and Automatic Lubrication
  • Fanuc / Siemens CNC controls with customized screens for monitoring machine parameters

DescriptionXYGVN12XYGVN20XYGVN25XYGVN40
Drilling Diameter Range (mm)Ø3 - Ø12Ø5 - Ø20Ø8 - Ø25Ø8 - Ø40
Spindles (Nos.)1/21
Drilling Depth (mm)600 / 1000
Component Weight on table (kg)1000
Drill Feed Range (mm/min)0 - 1000
Rapid Traverse (mm/min)1000080004000
Power per Spindle (kW)2.25.57.515
Spindle Speed (rpm)1200 - 10000600 - 6400600 - 3300350 - 3300
X axis Travel x Y Axis Travel (mm x mm)500 x 300
Working Envelope (mm x mm)500 (W) x 300 (H)
Spindle Center height from Table Top (mm)50 - 350
DescriptionXYGVN08XYGVN20XYGVN25XYGVN40
Drilling Diameter Range (in)Ø0.12 - Ø0.5Ø0.19 - Ø0.79Ø0.32 - Ø1Ø0.30 - Ø1.5
Spindles (Nos.)1/21
Max. Drilling Depth (in)24 / 40
Max. Component Weight (lbs)2200
Drill Feed Range (in/min)0 - 40
Rapid Traverse (in/min)150
Power per Spindle (hp)37.51020
Spindle Speed (rpm)1200 - 10000600 - 6400600 - 3300350 - 3300
X axis Travel x Y Axis Travel (in x in)20 x 12
Working Envelope (in x in)20 (W) x 12 (H)
Spindle Center height from Table Top (in)2 - 14
